Product Description

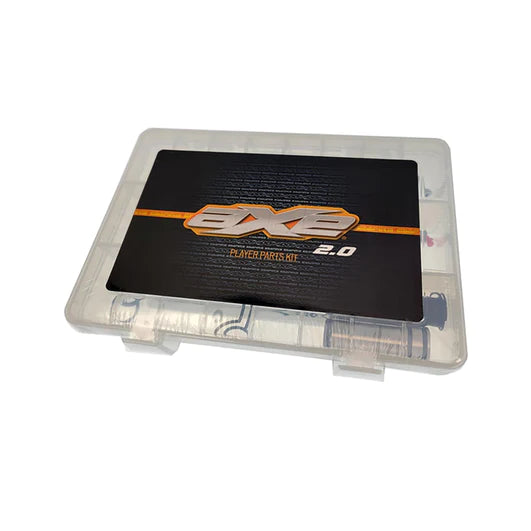

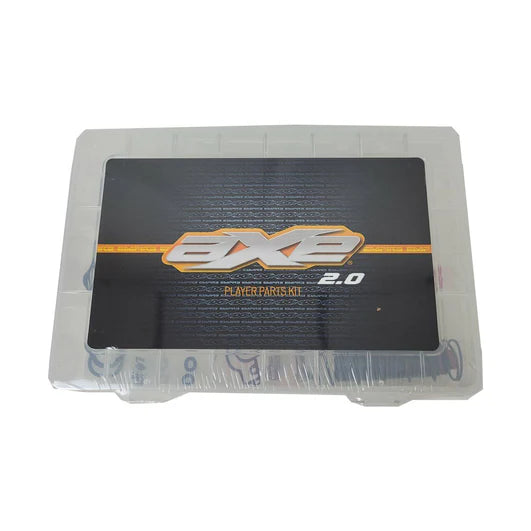

The Empire Axe 2.0 Parts Kit has all the essentials - o-rings, gaskets, screws, detents, and more - to keep your Empire Axe 2.0 paintball marker running smoothly.
ASA/Frame O-ring / 008/70A Buna - 2
Air Transfer Gasket - 1
Check Valve - 2
Bolt - 1
Rubber Bolt Tip - 3
Main Spring - 1
Bolt Guide Small O-ring / 1.5mm x 12mm ID 70A Buna - 8
Poppet O-ring / 2mm x 10mm ID 90A UR - 1
Upper Tube O-ring / 1mm x 13mm ID 70A Buna, Red - 2
Upper Tube O-ring / 0.8mm x 12mm ID 70A Buna - 2
Grip Panel Screw / BHCS 6-32 x .250 - 4
Poppet Spring - 2
Poppet Seal - 2
Bolt or Reg Piston O-ring / 017/70A Buna (.676 ID) - 4
Air Transfer Tube Male Assembly - 1
O Ring - 006/70 Buna (.114 ID) - 2
Feedneck Clamp Screw / BHCS 8-32 X .750 - 1
ASA Lever Screw / SHSS 3/16 Dia. 3/8 LG 8-32 x .250 - 1
Manifold or Foregrip Screw / SHCS 5-40 x .250 - 1
Feedneck Lever Bushing - 1
Ball Detent - Rubber Cone - 2
Bolt Guide Button Release Spring - 2
Regulator Filter - 1
Frame Screw / BHCS 8-32x.50 - 3
Trigger Set Screw / 8-32 x.250 Flat Pt. - 3
Trigger Return Magnet Screw - 2
Eye Cover Screw - 2
Bolt Guide O-Ring / 2.5mm CS x 23.0mm ID 70A Buna - 6
Velocity Adjuster O-ring / 1.52mm CS x 11.08mm ID 70A Buna - 2
Bolt Guide Release Button - 1
Trigger Screw - 1
